| Model No | Size | Material | Function |
|---|---|---|---|

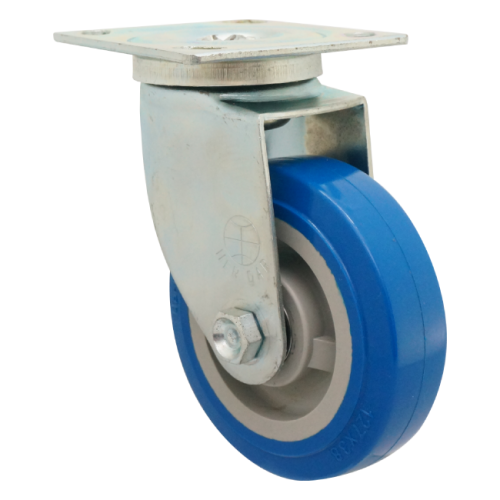

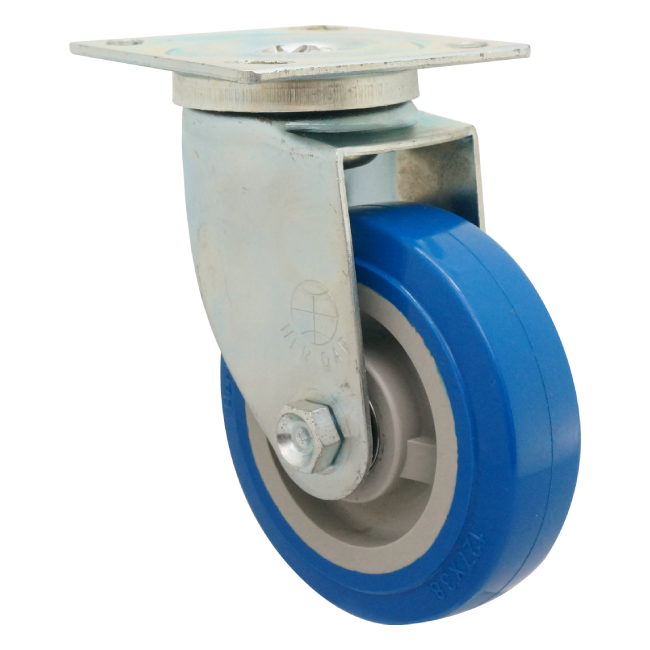

| HD-C428S/EUP5150VK | 5” | ELASTIC PU | SWIVEL |
 Wheels size (mm) |
 Width (mm) |
 Capacity (kg) |
 Height (mm) |
 Size of plate (mm) |
 Hole centre (mm) |
|---|---|---|---|---|---|
| 125 | 32 | 150 | 170 | 116 X 100 | 7 X 66 /93 X 77 |
USES
Wheels with good elasticity, they are particularly suitable for use on uneven surface, in presence of obstacles or for mixed indoor/outdoor uses with heavy-duty loads.
FLOORS
They are suitable for use on all types of floors.They do not mark or damage fragile floors.
ORIGIN
HERDAR – TAIWAN
| Size | Model No | Material | Function | Wheels size (mm) |
Width (mm) |
Capacity (kg) |
Height (mm) |
Size of plate (mm) |
Hole centre (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 5” | HD-C428S/EUP5150VK | ELASTIC PU | SWIVEL | 125 | 32 | 150 | 170 | 116 X 100 | 77 X 66 /93 X 77 |
| 5” | HD-C428R/EU5150VK | ELASTIC PU | RIGID | 125 | 32 | 150 | 170 | 116 X 100 | 77 X 66 /93 X 77 |
| 5” | HD-C428T/EUP5150VK | ELASTIC PU | BRAKE | 125 | 32 | 150 | 170 | 116 X 100 | 77 X 66 /93 X 77 |
| 5” | HD-1WEUP5150/B1/VK | ELASTIC PU | WHEEL | 125 | 32 | 150 |  42mm |
 13mm |
 Ball Bearing |
